How to enable AD authentication on the Web Platform

Context

You want 360Suite Web Platform to use AD authentication the same way Business Objects does.

Procedure

As part of the AD authentication configuration on the Business Objects server, two files will have been created and saved on “C:\Windows\” directory (default).

1. bscLogin.conf

2. krb5.ini


1. Copy these two files from the Business Objects server and paste them on the 360Suite Web Platform server the same directory, in the same directory, i.e. C:\Windows\.

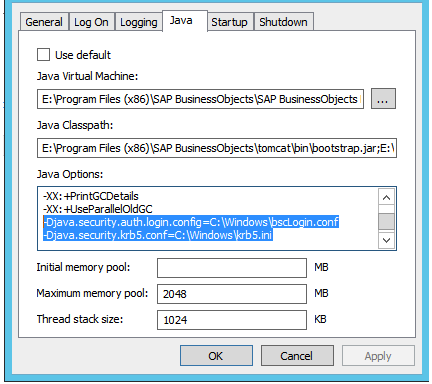

2. Open the 360Suite Web Platform Tomcat options, navigate to the Java tab and add the following lines to the Tomcat Java Options:


-Djava.security.auth.login.config=C:\Windows\bscLogin.conf
-Djava.security.krb5.conf=C:\Windows\krb5.ini

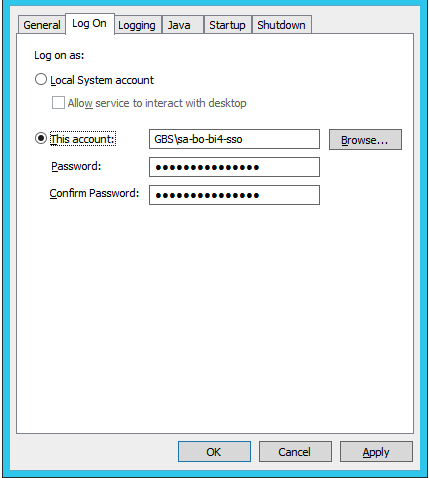

3. Navigate to the Log On tab and enter the AD Service Account Tomcat will use:

4. Click OK.

5. Restart the 360Suite Web Platform Tomcat for changes to take effect.

See also

1. SAP BusinessObjects Administrator Guide - Authentication section.

2. SCN blog for AD + SSO configuration: https://blogs.sap.com/2016/09/02/sso-configuration-with-active-directory-sap-business-objects-42-aes-encryption/

3. For SSO setup and configuration (including trusted SSO) - see Appendix C in the 360Suite installation guide.
